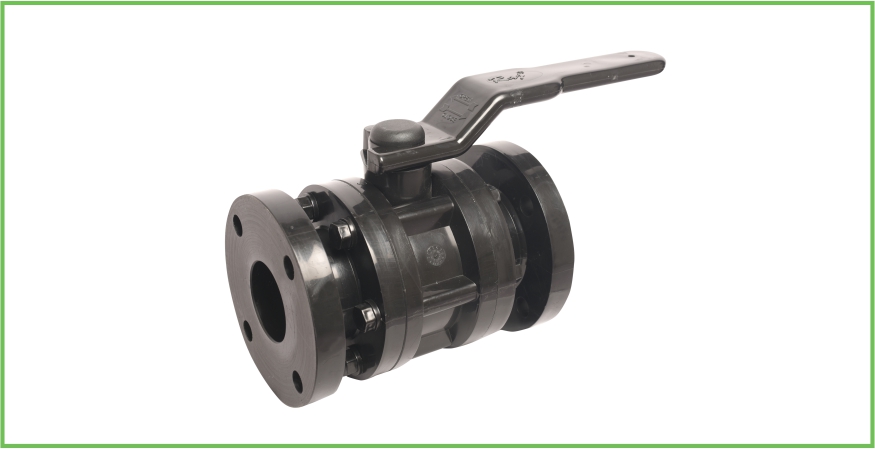

For many industrial applications use of Polypropylene Flanged Valve is done for delivering high work output. These types of valves are high in demand because of its outstanding features which includes resistance against pressure as well as high durability. These valves are made available in different sizes starting from 2", 2½", 3" , 4" to match up multipurpose needs of different industries.
One of the trusted manufacturers of this valve in the industry is Raj Group. The body of the valve is made out of Poly propylene. The product is easy to handle and comes with a High Pressure Bearing capacity ranging Up to 10 Kg/cm². The product is made available at an affordable price.
The Polypropylene Flanged Valve is manufactured based on the prevailing industrial standards. In case there is any customized need from the client end then in most of the cases the leading companies like Raj Group accept such orders.
2", 2½", 3" , 4"
Size M.M. | Flange Diameter 'D' M.M. | Flange Thickness 'T' M.M. | Face to Face M.M. |
63 | 164 | 21 | 198 |
75 | 179 | 24 | 223 |
90 | 200 | 26 | 240 |
110 | 230 | 30 | 299 |
